Real-Time PCR

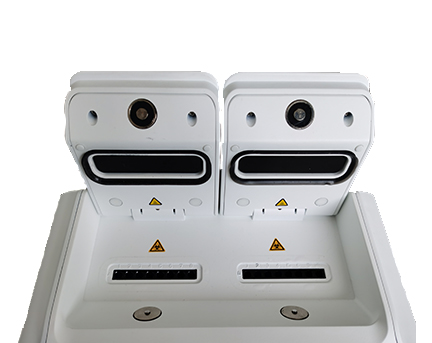

Q3200 Real-Time PCR System is a portable fluorescence quantitative PCR instrument developed by Bio-Gener company. This product adopts dual-channel and double 8-well blocks, which can run two different files simultaneously. The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, win10 operating system with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results.

Application: the product can be used for real-time detection in pasture, forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.


Inquiry

Sample capacity:16 × 0.2ml (2 × 8 holes, dual module)

Applicable consumables:0.2ml thin-walled transparent single tube, 0.2ml thin-walled transparent octet

Reaction system:10-100μL

Temperature control technology:Mallow semiconductor cooler, more than 1 million cycles

Temperature range:0-100 ℃ (resolution: 0.1 ℃)

Maximum rate of temperature rise and fall:6℃/s

Control accuracy:±0.1℃

Temperature homogeneity:±0.25℃

Temperature accuracy:±0.25℃

Heat cover temperature range:30-115 ℃ (adjustable, default 105 ℃)

Temperature control mode:Block mode, tube mode (automatic control according to reaction volume)

Fluorescence excitation wavelength:460-550nm

Fluorescence detection wavelength:F1：520-540nm

                                                          F1：520-540nm F2：540-580nm

Suitable for fluorescent dyes:F1:FAM/SYBR Green

                                               F1:FAM/SYBR Green I

                                               F2: HEX/VIC/JOE/TET

Excitation light source:High brightness LED, long service life, no maintenance

Detector:High sensitivity photoelectric sensor

Dynamic range:1-1010 Copies

Detection sensitivity:Single copy gene can be detected

Software analysis function:Quantitative / qualitative, melting curve, genotyping

Data export format:excel,csv,txt

Printing:Report can be printed directly (optional USB thermal printer)

Control method:7 inch color touch screen control, can also be connected to computer control

Interface mode：WIFI/USB2.0

Volume:300x267x198mm(L x W x H)

Weight:5.5KG

Working voltage:220VAC,50Hz

Power:DC15V 250W
